EXCELLENT PIONEER SX-980 STEREO RECEIVER – SERVICED – 1-YEAR WARRANTY – 80WPC

📌 Specifications

• • Condition: Excellent working – Fully tested and serviced
  • Model: Pioneer SX-980
  • Type: Stereo Receiver / Integrated Amplifier
  • PROTECTION PLAN: 1-Year Warranty Included
  • FREE SUPPORT: Must be used before return request
  • BOX: No original box
  • SKU: 1THLCO0639

EXCELLENT PIONEER SX-980 STEREO RECEIVER

Condition: Excellent – Fully tested, fully serviced, and performing flawlessly



A powerful, beautifully built silver-face Pioneer delivering rich analog sound and vintage style.

Detailed specifications:

• Tuning range: FM, MW
• Power output: 80 watts per channel into 8Ω (stereo)
• Frequency response: 5Hz to 100kHz
• Total harmonic distortion: 0.05%
• Damping factor: 30
• Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
• Signal to noise ratio: 76dB (MM), 90dB (line)
• Output: 150mV (line), 30mV (DIN), 1V (Pre out)
• Speaker load impedance: 4Ω (minimum)
• Semiconductors: 3 x FET, 8 x IC, 35 x transistors, 45 x diodes
• Dimensions: 526 x 176 x 440mm
• Weight: 18.8kg
• Accessories: FM T-type antenna
• Year: 1978



🔑 Key Features

• • 80WPC of Clean Analog Power – Drives even demanding speakers effortlessly
  • Dual Analog Power Meters – Classic Pioneer display and real-time feedback
  • Toroidal Transformer Design – Delivers strong, steady current
  • Vintage Silver Face + Walnut Cabinet – Timeless look and feel
  • Phono Input – Designed for MM turntables
  • Speaker A/B Switching – Dual-zone or two-pair setup with ease
  • Tone & Loudness Controls – Tailor your sound to your taste

• Heavy-Duty Construction – Built like a true hi-fi tank

🌟 Why This One?
The SX-980 is part of Pioneer’s legendary silver-face lineup — combining brute strength with smooth vintage tone. It sits just beneath the SX-1250 in power and prestige, offering audiophile-grade performance with classic visual charm. Fully serviced and protected by a 1-year warranty, this receiver is ready for decades of faithful listening.

💎 What Makes the SX-980 Special?
The Pioneer SX-980 isn’t just another vintage receiver — it’s a statement piece. Positioned just beneath the legendary SX-1250, this unit offers 80 watts per channel of muscular, clean power, housed in an elegant silver-aluminum face and walnut cabinet. It features dual analog power meters, toroidal transformer design, and that unmistakable Pioneer warmth that defined the late ‘70s audio scene.

It’s rare to find one in this condition — fully serviced, electronically restored, and preserved to sound just like it did in 1978. Whether you’re building a showpiece system or want real hi-fi impact, this receiver delivers sound and presence that modern gear can’t replicate.

🔊 Suggested Pairings
Speakers: JBL L100, Klipsch Cornwall, ADS L810
Turntables: Technics SL-1200MK2, Thorens TD-160, Rega Planar 3
CD / Streamers: Marantz CD6007, Bluesound Node, TEAC PD-301

🎁 BUYING A COMBO? GET $100 OFF – MESSAGE US FIRST!
Planning to buy a speaker + receiver/amplifier combo?
Contact us BEFORE you place your order and we’ll instantly send you a $100 OFF voucher for your combo purchase!

💬 This offer is only available via direct message, and only before checkout.
Let us know you’re building a full system — we’ll take care of the rest, personally.

👉 Don’t miss out. Message us now and save big on your perfect setup!

Condition:

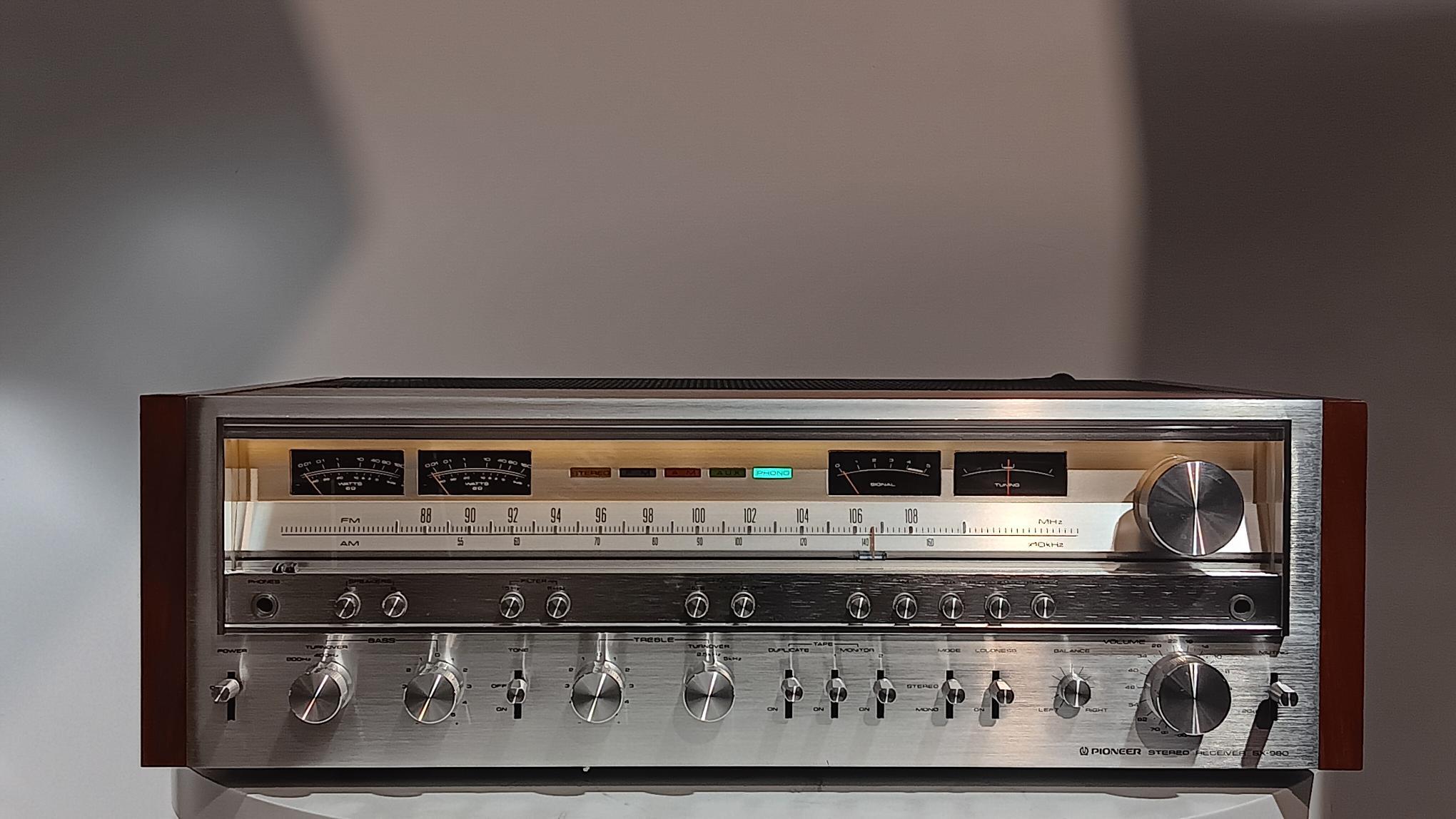

This receiver is in “Excellent” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

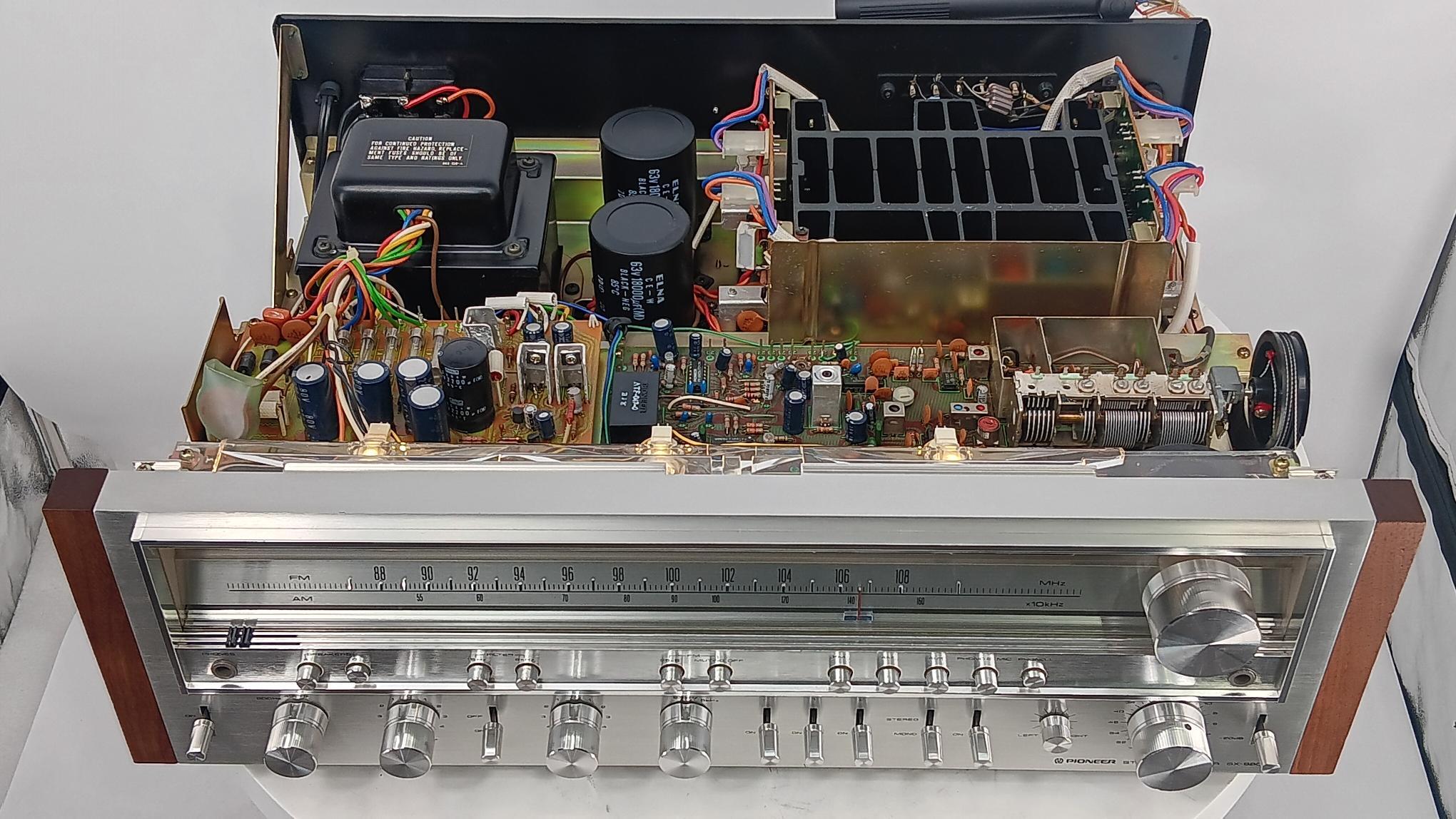

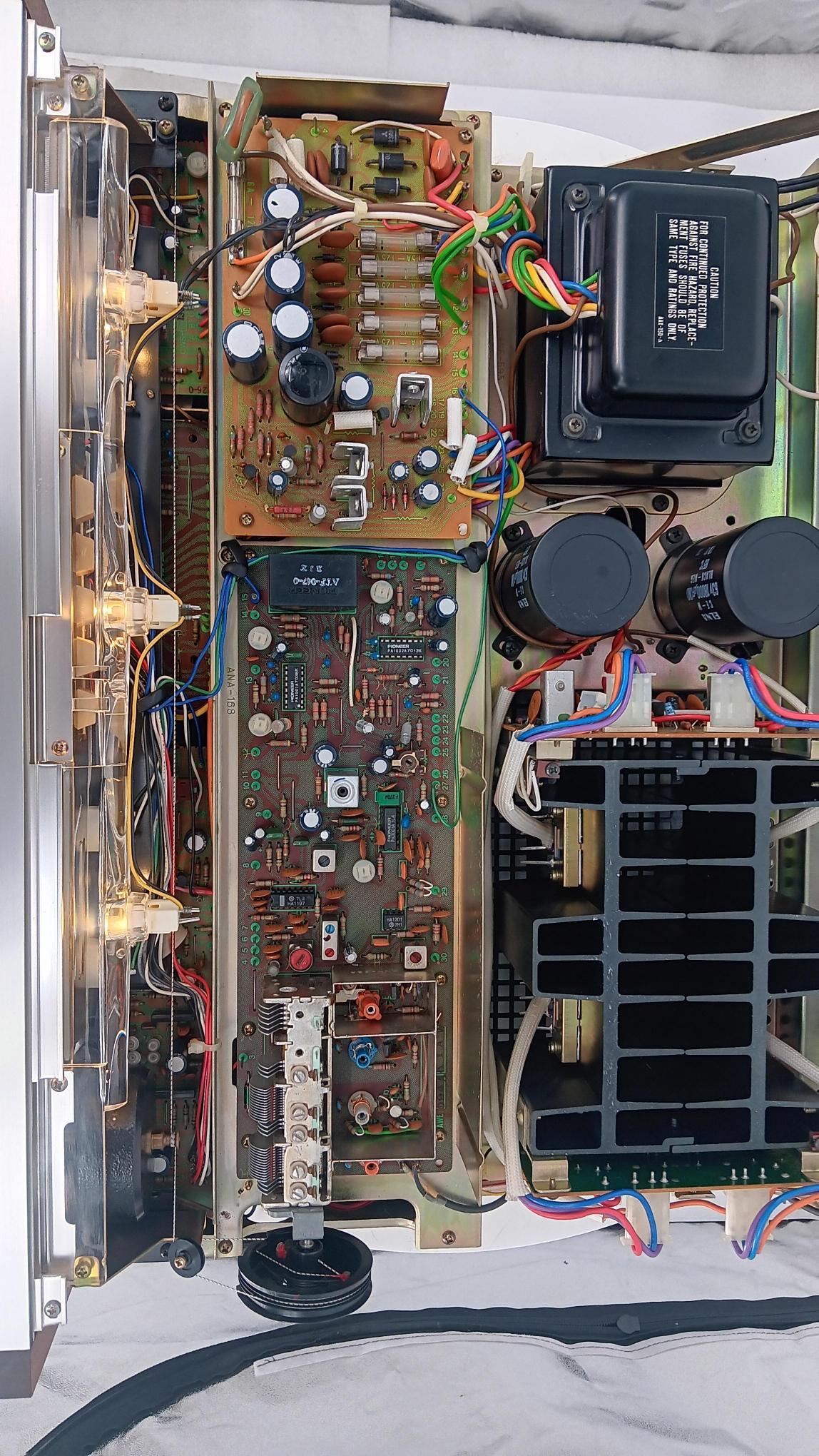

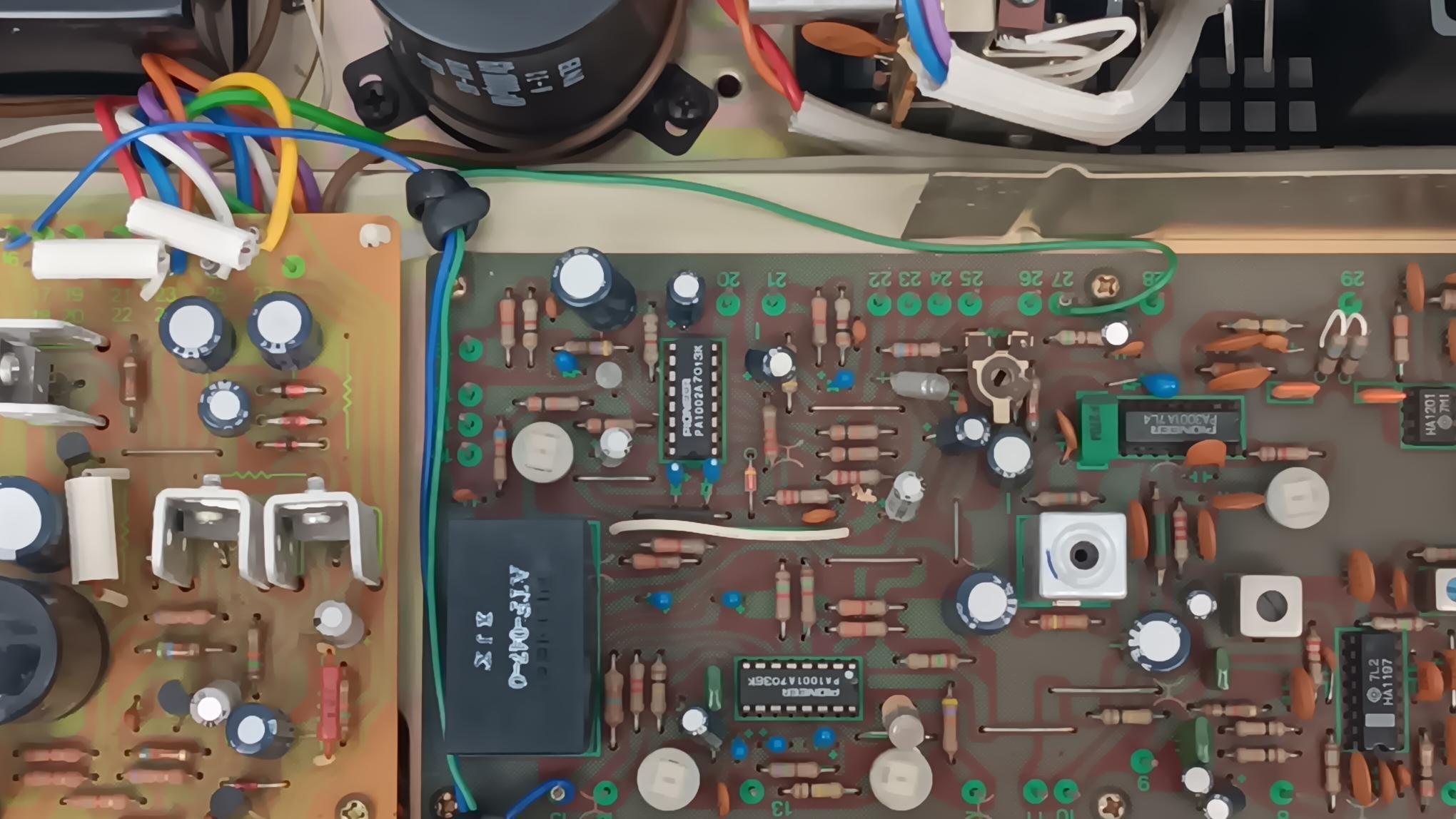

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Pioneer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Thank you for being a valued customer & Thanks for looking!
