EXCELLENT YAMAHA CR-820 STEREO RECEIVER – SLEEK SILVER LOOK, 1-YEAR WARRANTY

Specifications

• Condition: Excellent – Fully tested and restored
• Model: Yamaha CR-820
• Type: AM/FM Stereo Receiver
• Protection Plan: 1-Year Warranty Included
• Free Support: Must be used before requesting return
• Packaging: Professionally packed, insured & tracked
• Original Box: Not included
• SKU: 15QPAE0869

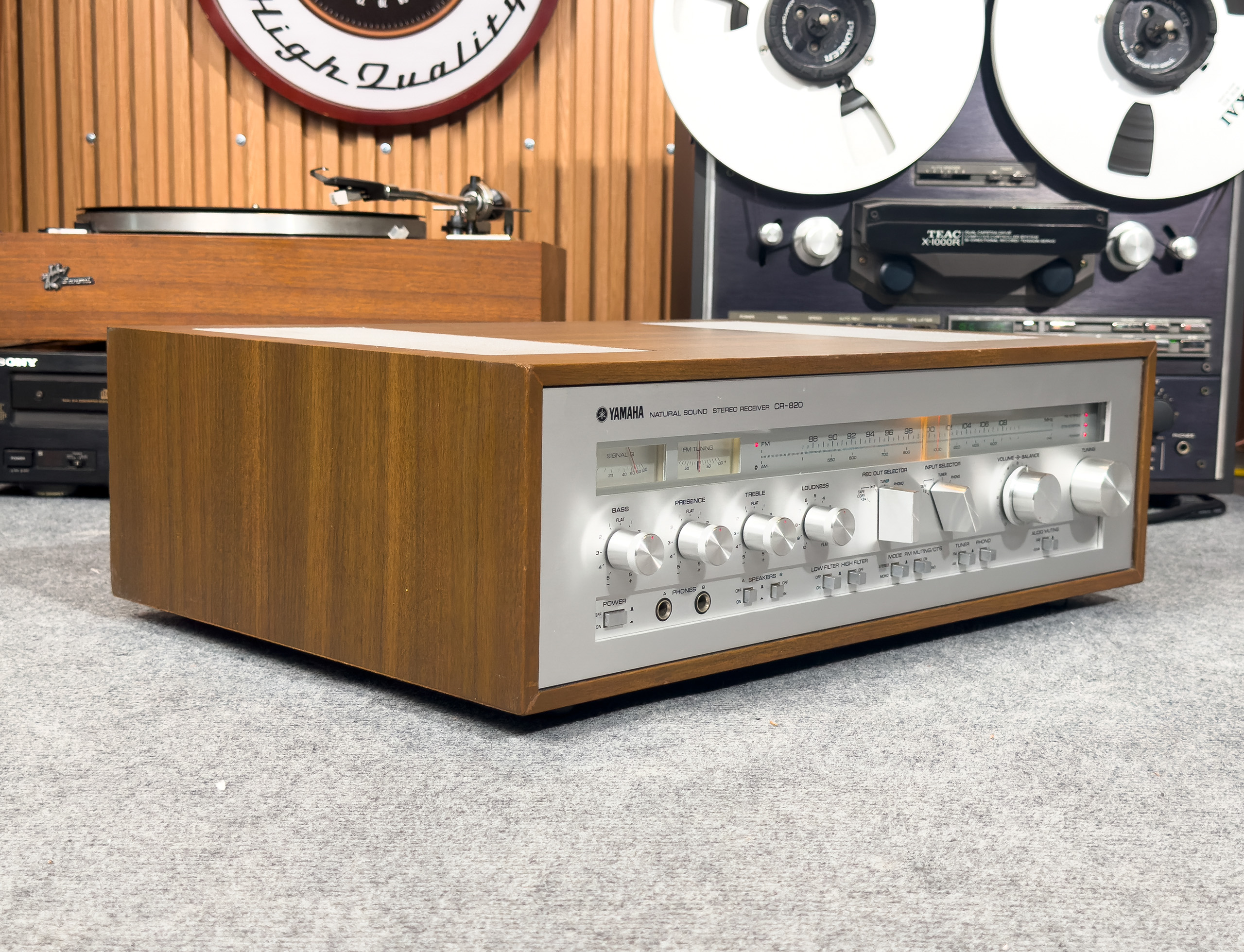

EXCELLENT YAMAHA CR-820 STEREO RECEIVER

✨ Condition: Excellent – Fully serviced and tested, silver face is clean

The Yamaha CR-820 is a well-regarded classic from the late 1970s, combining Yamaha’s trademark clean sound with elegant styling and solid build quality. Rated at 55 watts per channel, the CR-820 offers smooth, distortion-free power, perfect for vinyl playback, analog sources, or daily listening with vintage flair.

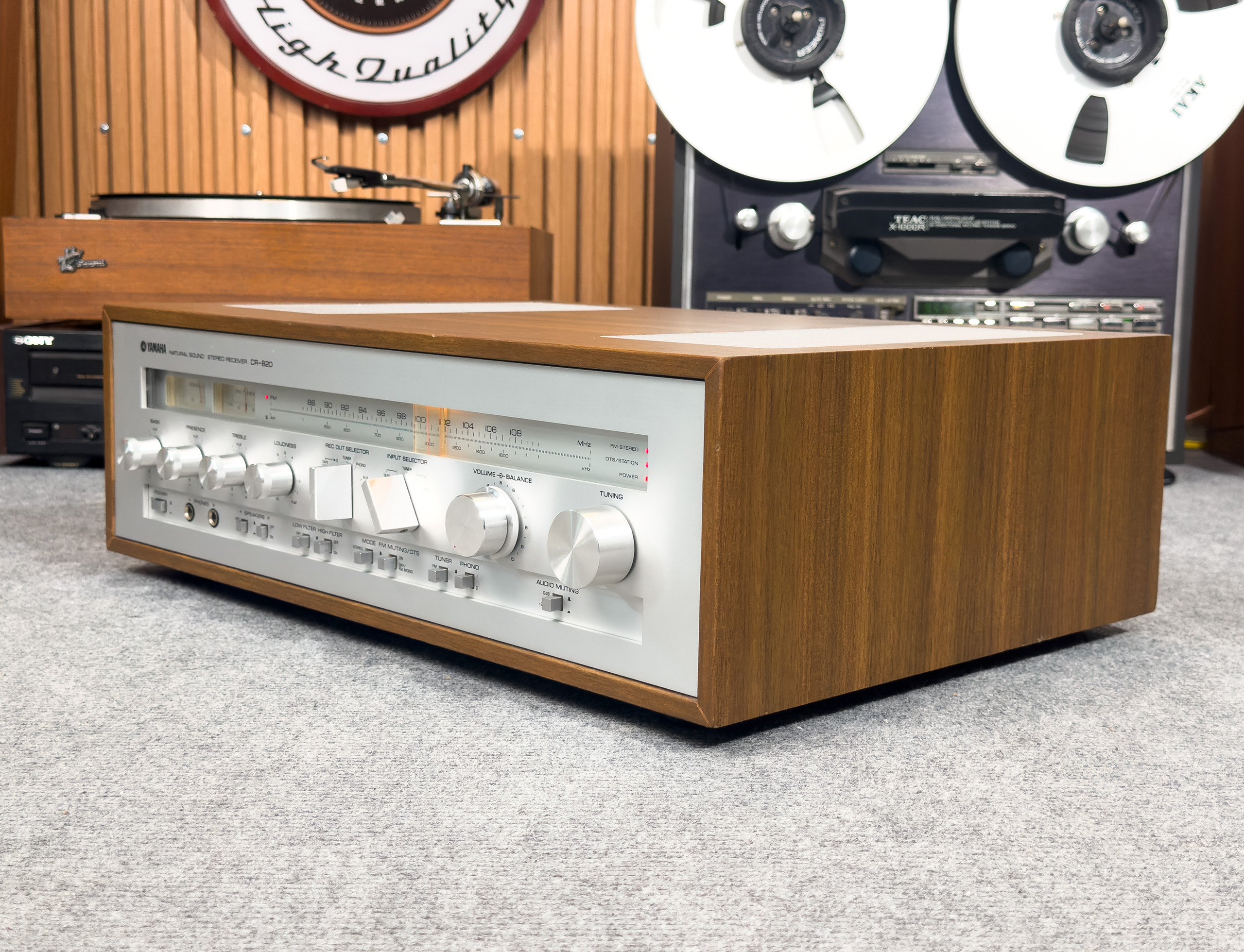

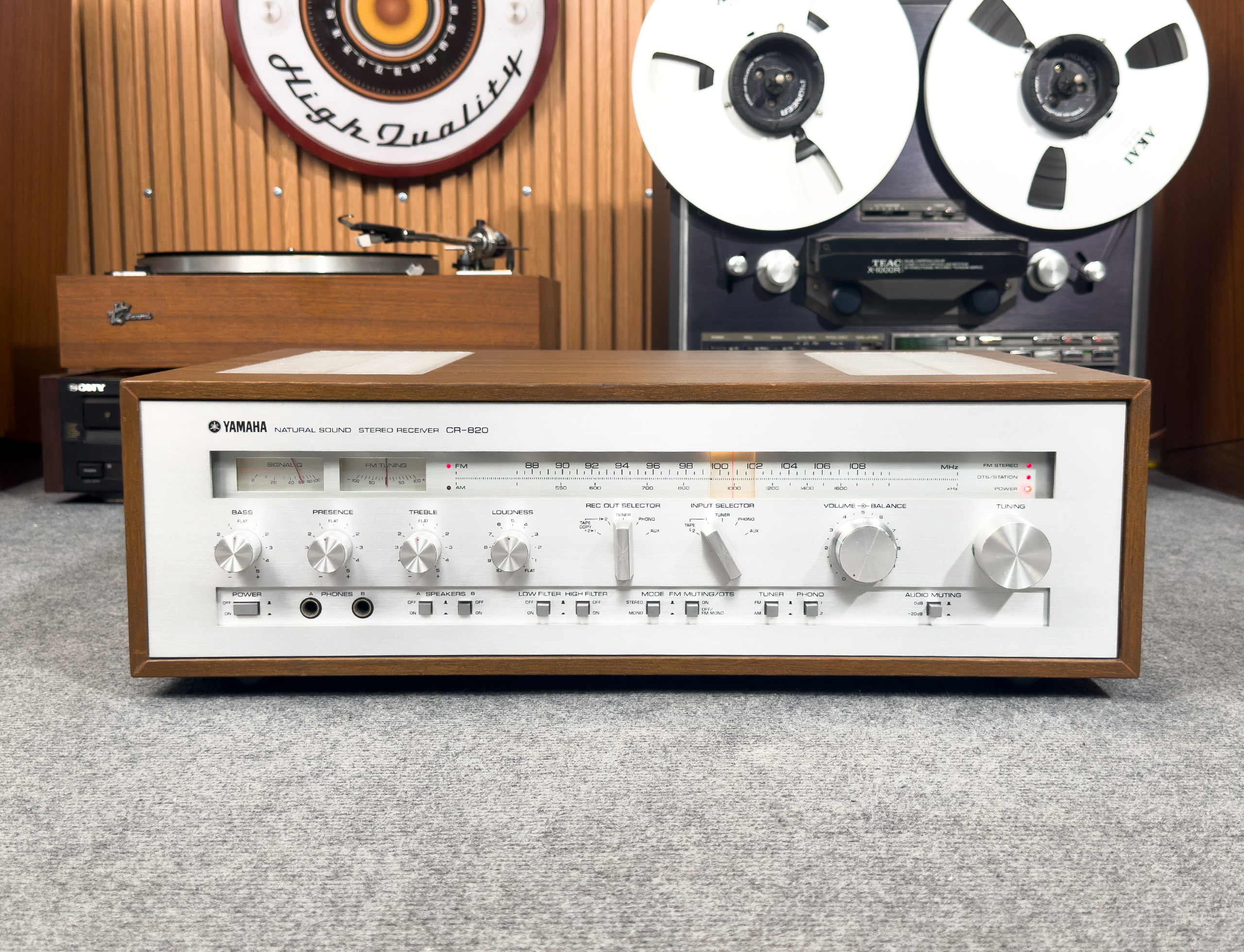

Its silver brushed-aluminum faceplate, detailed analog tuner scale, and soft glow meters give it standout visual appeal, while the internal design is all business — low-noise circuitry, accurate tone controls, and reliable output. Fully serviced and ready to run, it’s backed by HQaudios’ 1-Year Warranty.

Detailed Specifications

• Tuning range: FM, MW
• Power output: 50 watts per channel into 8Ω (stereo)
• Frequency response: 20Hz to 20kHz
• Total harmonic distortion: 0.02%
• Damping factor: 40
• Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)
• Signal to noise ratio: 78dB (MM), 97dB (line)
• Output: 120mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω (minimum)
• Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x
• LED, 4 x ceramic filters
• Dimensions: 448 x 146 x 395mm
• Weight: 12.2kg

Key Features

• • Beautiful brushed aluminum faceplate with analog signal meters
  • Classic Yamaha low-distortion, high-headroom amplifier design
  • Loudness contour and tone filters for detailed listening control
  • Speaker A/B switching with dual phono support
  • Wood veneer cabinet with minimalist styling

• Great tuner section with stable FM performance

🧡 What Makes It Special?

• Understated elegance with clean Japanese sound
• Reliable power for vintage or modern speakers
• Precision build and musical delivery
• Silver-face collector appeal with full functionality
• Includes full 1-Year Warranty from HQaudios

🎧 Suggested Pairings

Speakers:

• JBL L166 Horizon – Rich low end, refined highs
• KLIPSCH Heresy II – Highly sensitive, punchy presence
• BOSE 901-6 – Expansive sound field with excellent dispersion
• JBL 4412 – Clean studio-grade accuracy
• JBL L77 – Compact, vintage-style match

👉 This Yamaha CR-820 delivers timeless design and true hi-fi clarity — serviced, warrantied, and ready to power your system!

BUYING A COMBO? GET UPTO $100 OFF – MESSAGE US FIRST!

Planning to buy a speaker + receiver/amplifier combo?

Contact us BEFORE you place your order and we’ll instantly send you a $100 OFF voucher for your combo purchase!

This offer is only available via direct message, and only before checkout.

Let us know you’re building a full system — we’ll take care of the rest, personally.

👉 Don’t miss out. Message us now and save big on your perfect setup!

Condition:

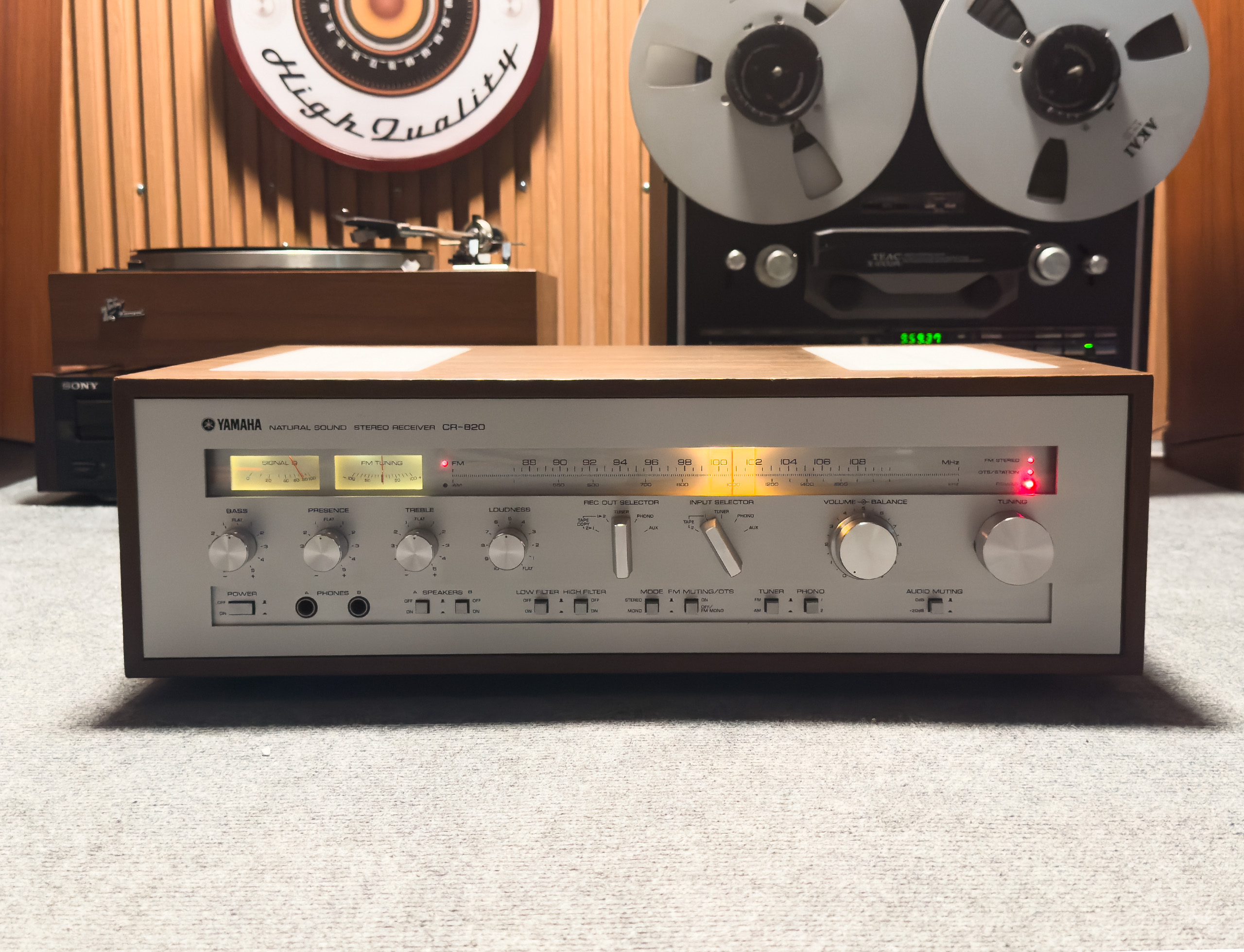

This receiver is in “Excellent” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

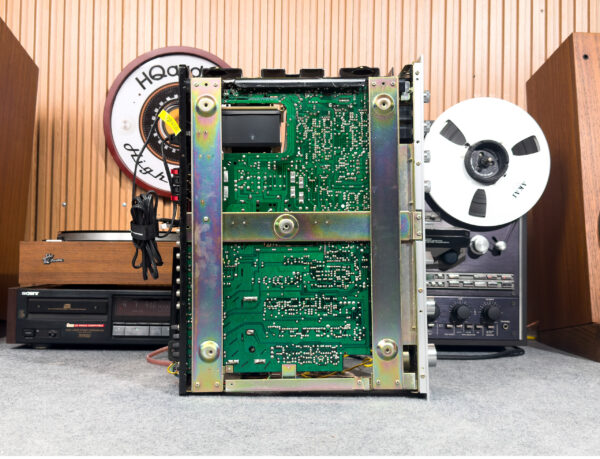

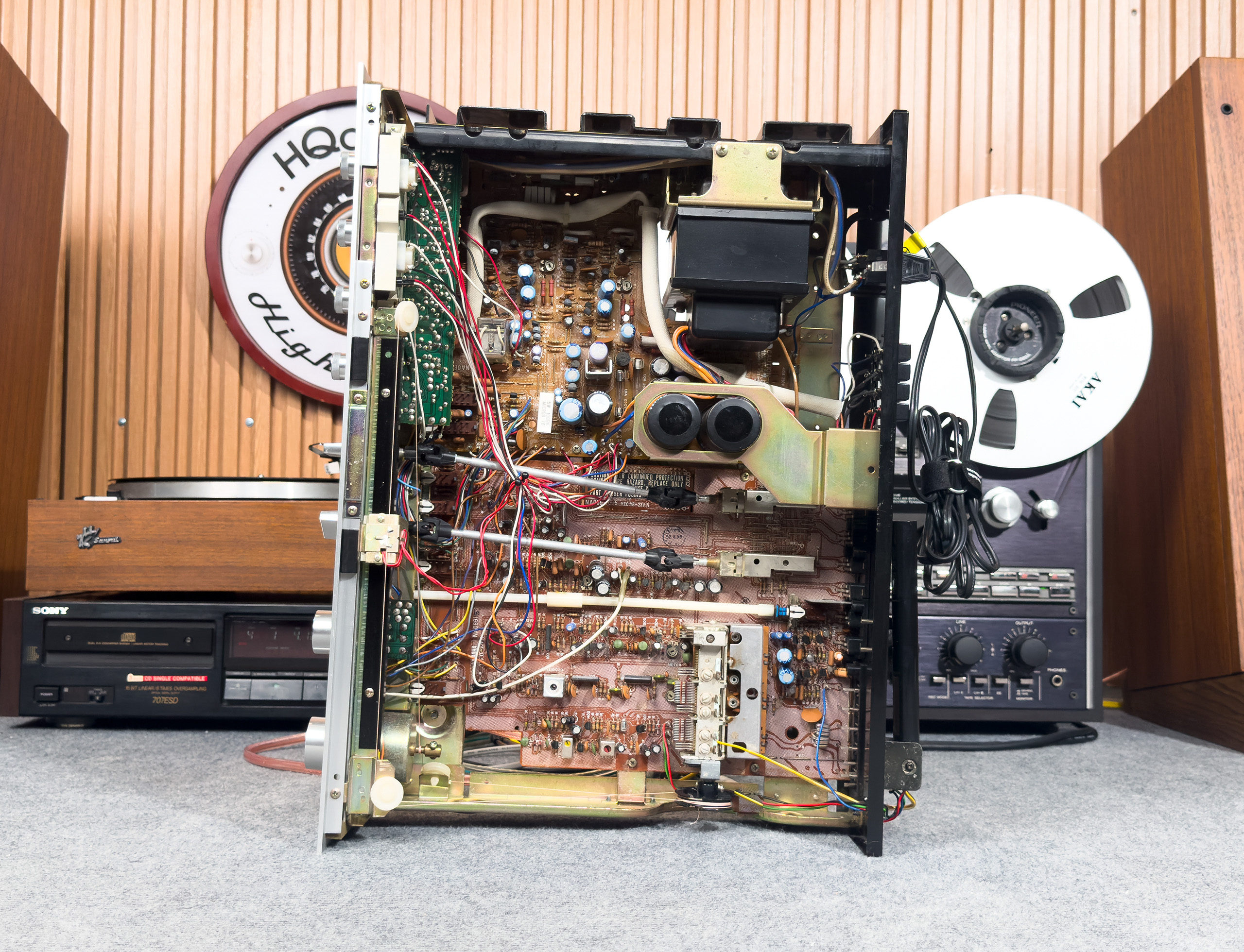

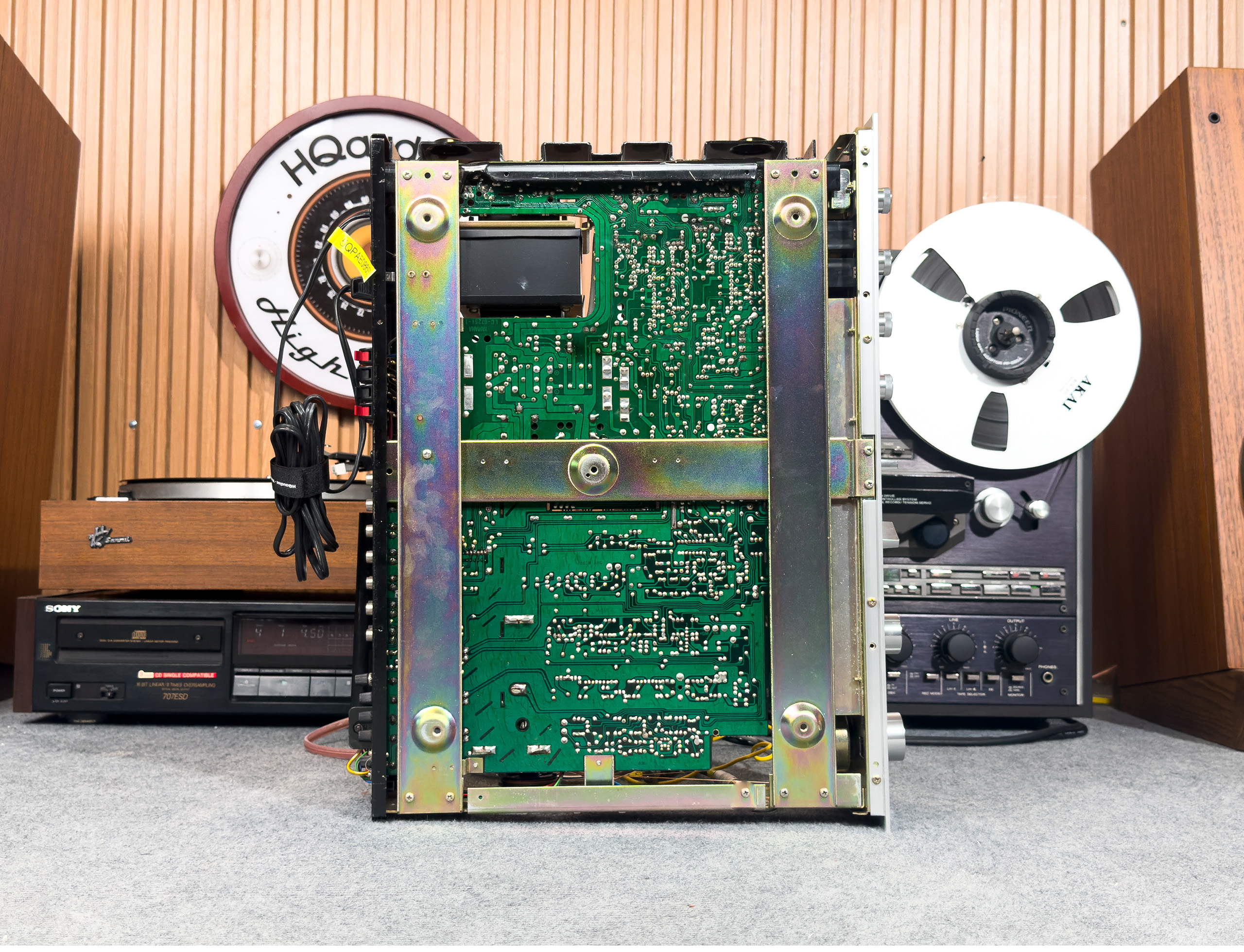

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. This receiver used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used.

Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Thank you for being a valued customer & Thanks for looking!
